Canare CAT6A on Schill GT 380RM 100m, (Telegartner RJ45)

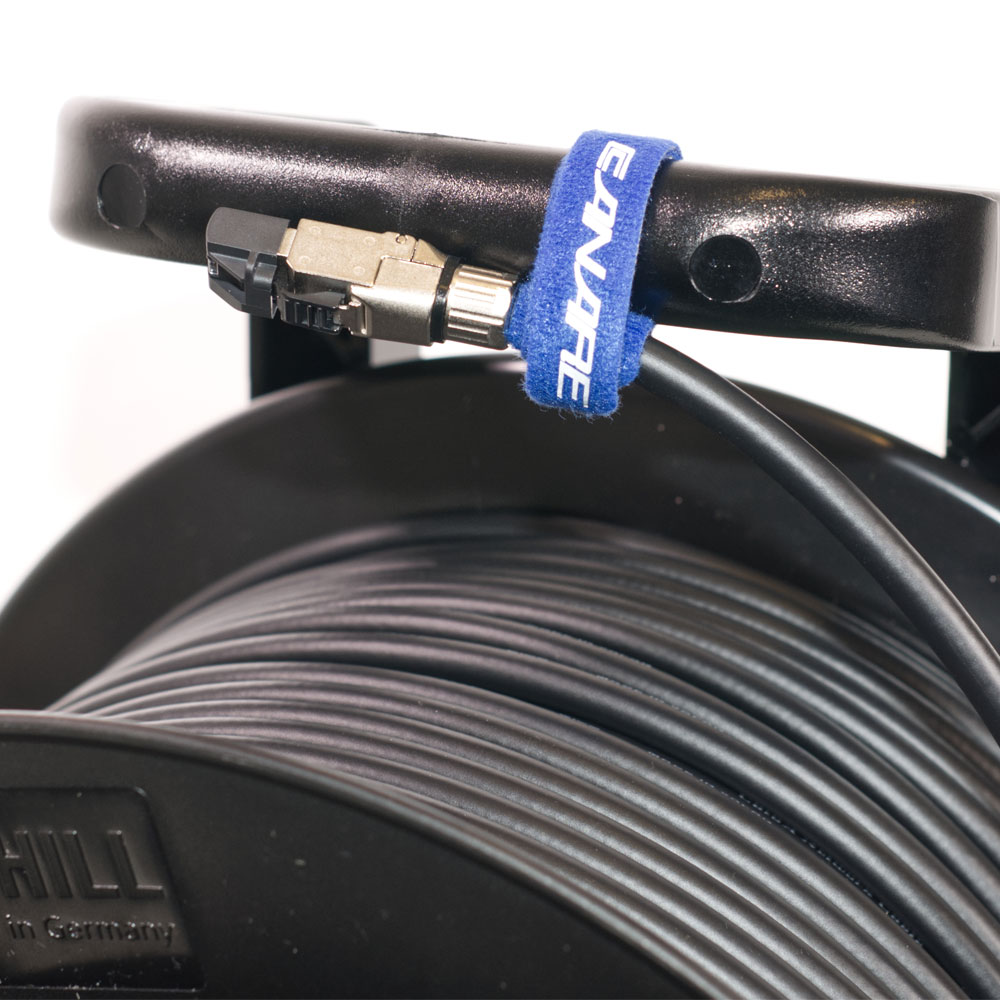

Flexible CAT6A STP cable 23AWG with outer diameter 8,6 mm with Telegartner RJ45 terminals, wound on Schill GT 380.RM cable drum. Ethernet cables are used not only for computer networks, but also more recently for digital audio networks, network cameras, HDBaseT transmissions. The total cable length is given including connectors.

Canare RJC6A-4P-SFM cable :

Features:

• Flexible CAT6 STP cable made from the highest quality materials
• Solid copper conductors 23 AWG / 0.26 mm2 "wire"
• High density braid shielding (87% coverage factor)
• Abrasion resistant PVC jacket
• Cable tested for Dante™ audio interconnects. (max. 100 m)

* Dante™ is a trademark of Audinate Pty Ltd.

Specifications:

• Cable weight in kg/100m: 8.9
• Sheath diameter (overall diameter) in mm: 8.6
• AWG: 23 (0.26mm)
• Number and diameter of cores per conductor in mm: 1/0.57
• Shielding factor: 100%
• Conductor resistance in Ohm/100m: 8.2
• Impedance in Ohm: 100

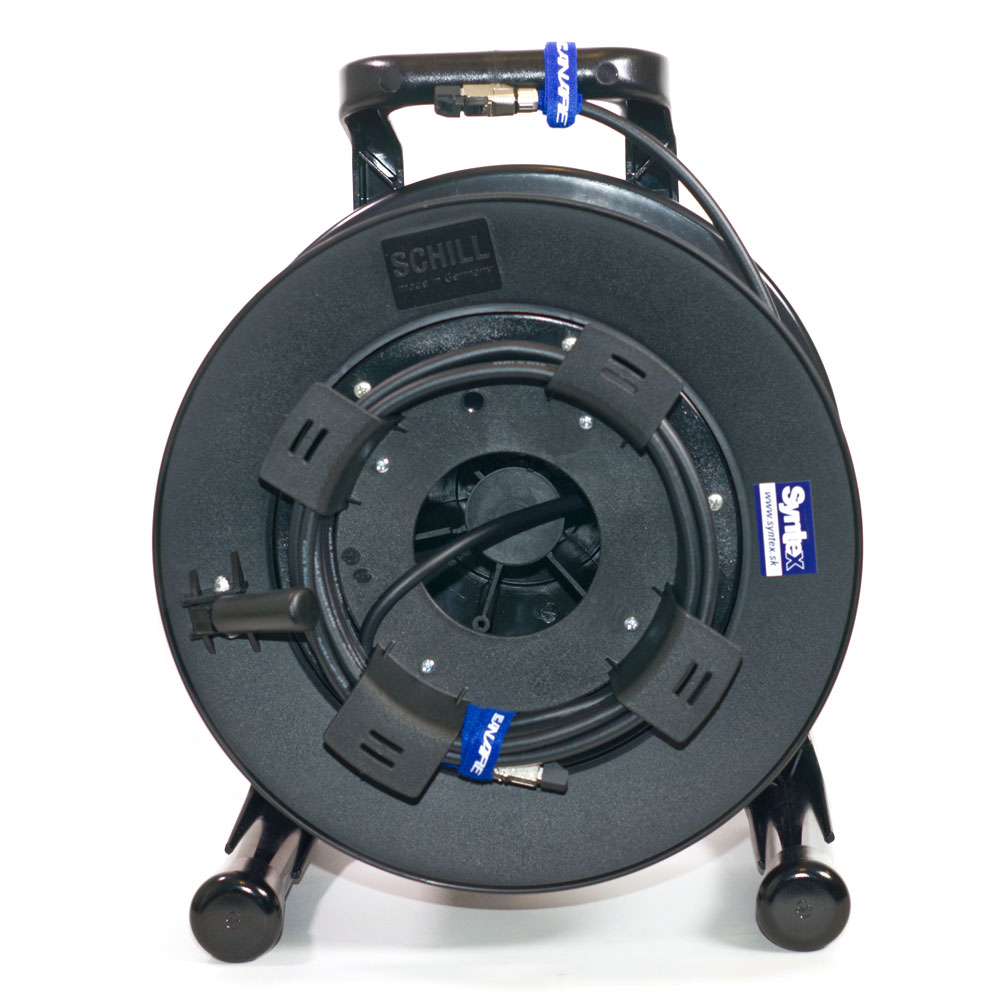

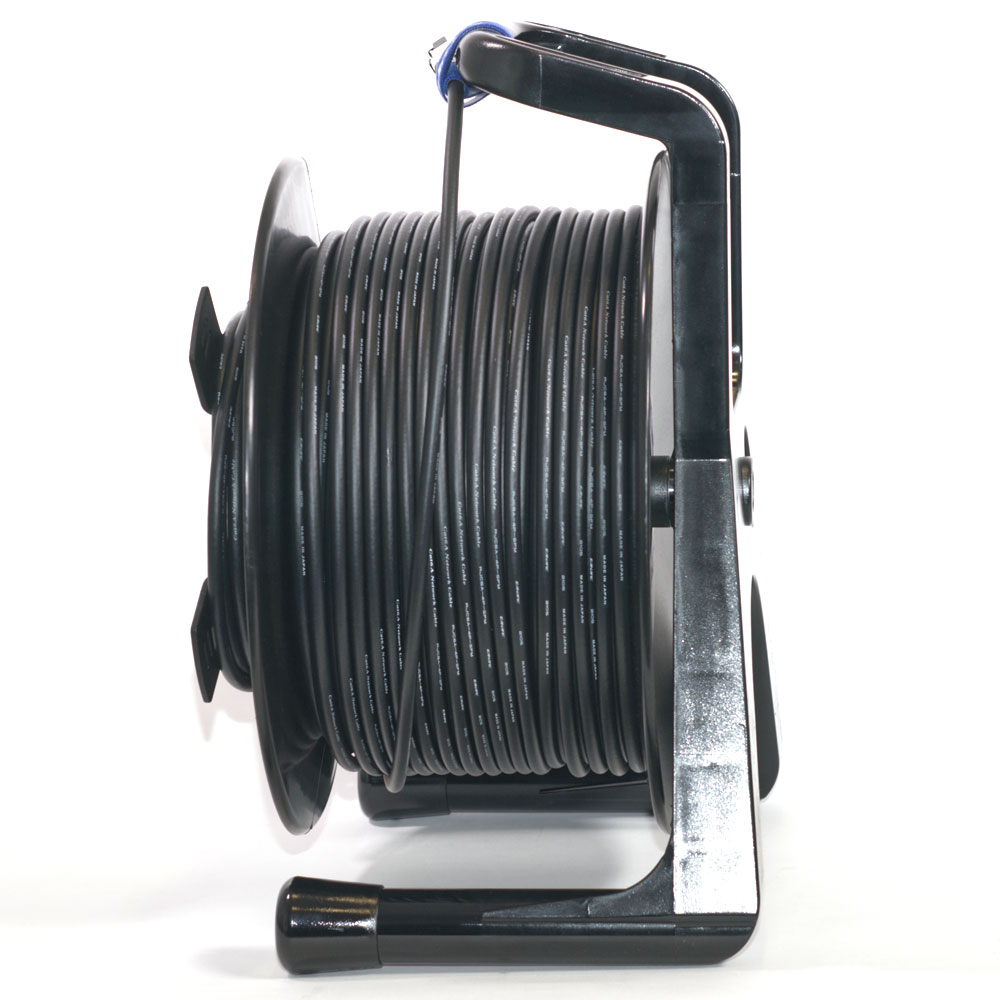

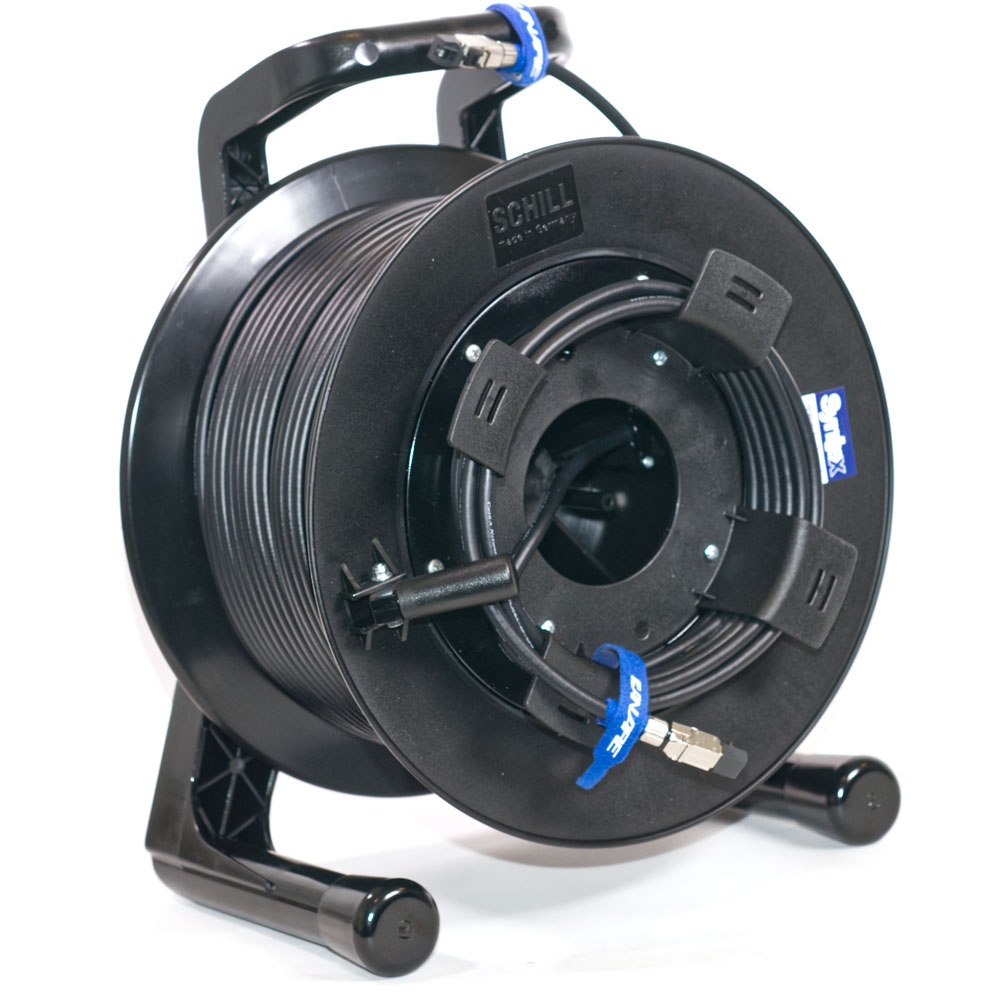

Drum Schill GT 380.RM

Usage:

• universal - for different types of cables
• plastic holder for cable attachment
• capacity in (m) according to cable diameter: 6mm - 331m, 7mm - 239m, 8mm - 182m, 9mm - 147m

Specifications:

• handle for easy winding
• integrated brake
• width x depth x height in mm: 380 x 236 x 491
• weight in kg: 4,30
